Lightweight Thermal Goggles UNITEC-G

Explore the world, secure the perimeter, or make a long-range observation system with the versatile thermal goggles UNITEC-G. Intuitive controls and easy-to-use interface make it a perfect tool for all categories of customers.

AVAILABLE THERMAL DETECTORS

The device comes with a choice of thermal detectors (FPAs): 384x288 and 640x480 both running at 50Hz Contact us for more details on specifications and availability

SPECIFICATIONS




Optical Magnification
Objective Lens System
Field-Of-View (FOV)
Focusing Range
Eyerelief
FPA Resolution and Pitch
FPA Type
FPA Sensitivity
FPA Refresh Rate
Digital Zoom
Display
Imaging Modes
Digital Video Recorder
Max. Detection Human (1.7x0.5m)
Max. Detection Vehicle (2.3x2.3m)
Power Source
Battery Life
Environmental Protection
Dimensions, mm
Weight, grams
Operating Temperature
Warranty
Export

UNITEC-G38

1.5X (3X‡)

25mm Focal Length, f/1.0 (50mm, f/1.0‡)

14.9°x11.2° (7.5°x5.6° ‡)

0.25m .. Infinity (1m .. Infinity ‡)

384x288, 17 micron

Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)

< 60mK

50Hz

2X and 4X

Full Size: 0.6-Inch, Dual-AMOLED, 800x600, Colour

1 Monochrome + 8 Colour

Optional: Built-In with microSD Card or External with SD Card

830m (1,660m‡)

1,130m (2,250m‡)

4 AA Batteries, Any Kind: Lithium, Alkaline, Rechargeable, etc.

Up to 8 hours

IP66, IP67 or Better (Optional)

112x138x55

455

-40°C .. +50°C

7 Years, Limited

Available Worldwide **

UNITEC-G64

1X (2X‡)

25mm Focal Length, f/1.0 (50mm, f/1.0‡)

24.5°x18.5° (12.4°x9.3° ‡)

0.25m .. Infinity (1m .. Infinity ‡)

640x480, 17 micron

Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)

< 60mK

50Hz

2X and 4X

Full Size: 0.6-Inch, Dual-AMOLED, 800x600, Colour

1 Monochrome + 8 Colour

Optional: Built-In with microSD Card or External with SD Card

830m (1,660m‡)

1,130m (2,250m‡)

4 AA Batteries, Any Kind: Lithium, Alkaline, Rechargeable, etc.

Up to 8 hours

IP66, IP67 or Better (Optional)

112x138x55

455

-40°C .. +50°C

7 Years, Limited

Available Worldwide **

STANDARD EQUIPMENT: WHAT'S IN THE BOX

UNITEC-G Goggles

Optinal Equipment

Hands-Free Operation

Standard Head Gear PHG-7 (PVS Bracket Only)

Advanced Flip-Up Helmet Mount (Shroud-Ready) HM-714XM-SR

Advanced Flip-Up Helmet Mount (Kit With Straps) HM-714XM-C

Low-Profile Flip-Up Helmet Mount (Shroud-Ready) HM-714LP-SR

Low-Profile Helmet Mount (Kit With Straps) HM-714LP-C

Operational Convenience and Tactical Advantage

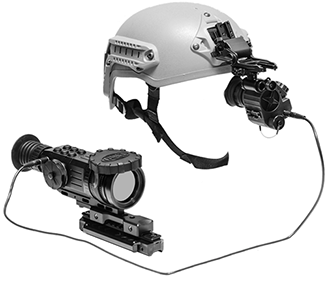

Head-Mounted Display HMD-800 streams thermal video directly from the device (for hands-free application J-Arm and head gear are required)

Remote Control Unit

Image Capturing

Built-In Video Recorder with MicroSD Card and SD Adapter

External Video Recorder with SD Card

Video-Out-to-USB Adapter video recording with PC

↑
