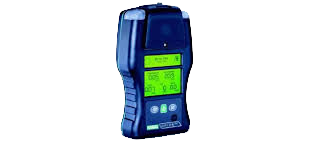

Advanced and highly flexible portable 1-5 gas instrument for detecting the presence of over 20 gases Versatile and rugged, the ORIONplus IR Detector offers five gases with infrared and a wide range of sensor options and is used in many applications as a personal monitor for pre-entry checks. The newly developed array of IR sensors will detect CO2 or hydrocarbons in LEL range or up to 100% by volume. The 20L catalytic combustion sensors are “best in class” silicon-resistant and will reliably detect up to 100% LEL. Available toxic sensors include ammonia, chlorine and many other choices. Simply choose your IR sensor, add two toxic sensors and finish your unit with oxygen and LEL sensors
Large, fully-graphic back-lit display
Data-logging standard using ORIONLINK® software
Carbon-filled nylon case protects against RFI and corrosive gases
Long-life battery with three-hour recharge
Built-in pump with electrical PermaCheck™ function standard
Size 165 x 92 x 66 mm
Weight 550 g
Display Full graphic
Battery NiMH
Case High strength non-corrosive plastic
Battery life 11 hrs with IR sensor
Charging 3 hours with MSA fast charger
Operating range -20° C to +50° C
Datalog 200 hours @ 1 minute intervals
Humidity 15-90% RH non-condensing Short periods of 5-95% RH non-condensing
Ingress Protection IP54 minimum
For More Technical Details Contact:oshodefence@gmail.com
