Rad-D

Radiation Detection

• Most durable construction
• Large crystal with PMT has very high sensitivity
• Simple operation, easy management and understanding
• Alarm increases proportional to radiation detected
• Has both instantaneous and total radiation count

Versatility

• Up to four different detectors to every control unit
• Choice of Bluetooth or serial connection
• Easily mounted anywhere
• Rugged modules are useful in more conditions

Rugged, Highly Sensitive Fixed Mount Radiation Detector

• 24/7 operation
• Small, mounts anywhere
• No maintenance needed
• Easy to use; no special training needed
• Highly sensitive, very large 3” diamx 2” crystal
• NaIcrystal integrated with PMT for high sensitivity
• Automatic calibration against background radiation
• Reacts in less than 1 second

PROPRIETARY

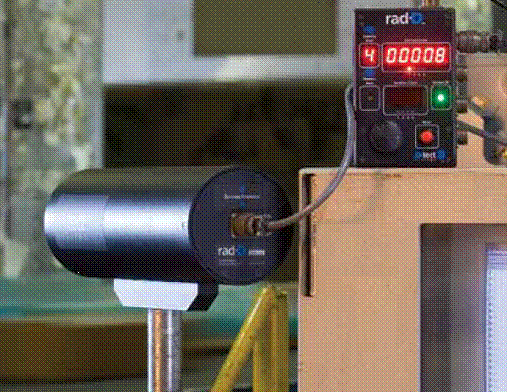

The rad-D is a fixed-position radiation detector that is used to monitor doorways, driveways, and loading docks.
It can inspect packages or luggage on conveyor belts and can be integrated with an X-ray machine or metal detector to increase detection capabilities.
The rad-D can also be easily connected to an existing security system to add radiation to other types of alarms.
The rad-D is small. While similar devices need large, fixed areas and concrete footings to mount their systems and require traffic (vehicles or people) to be forced through a fixed inspection corridor, the rad-D can be attached to walls, light poles, conveyor belts, or X-ray machines. The flow of vehicles or pedestrians runs smoothly under inspection.
A rad-D system can include up to four detectors – operating simultaneously – each up to 150 feet away from the display electronics. The rad-D integrates into existing security networks using either a serial communications link or a Bluetooth wireless link that can communicate with a PC up to 300 feet away.
With four detectors, an operator can monitor four different doorways, driveways, conveyor belts, etc., anywhere in your facility. When the rad-D alarms, it can trigger active responses such as halting conveyor belts or lowering a blockade.
Two different types of rad-D detectors are available: Gamma and Neutron.
The gamma radiation detector searches for both gamma and X-ray radiation and can be configured as either omni-directional or uni-directional. This ensures that the unit is triggered only by what is directly in front of it, not by what is in the next traffic lane or on a parallel conveyor belt.
The neutron detector is an important tool to detect the transport of illicit nuclear weapons. Many users configure a combination of gamma radiation detectors and neutron detectors to cover the full spectrum of radiation.
Like the mini rad-D, the rad-D is extremely user-friendly. It provides the operator with a single digit read on a scale of “1” to a “9” to show the strength of the detected radiation. The rad-D also shows the actual count of photons or neutrons and automatically calibrates itself to the natural background radiation environment to maximize its detection sensitivity.
